Corten steel, also known as weathering steel, has become a preferred material for large-scale outdoor sculptures because it develops a stable rust-like patina that protects the metal beneath rather than continuing to corrode. For a recent commission from an Australian client, this property made Corten the natural choice for a multi-ring spiral sculpture intended for long-term outdoor display. Instead of requiring repeated repainting or coating maintenance, the surface is designed to weather naturally over the first one to two years, settling into a warm, even orange-brown finish that many public art clients specifically request for its organic, timeless appearance.
Beyond aesthetics, Corten steel offers a practical advantage for coastal and variable Australian climates. Its self-protecting oxide layer performs reliably across a wide range of humidity and temperature conditions, reducing the long-term maintenance burden for public spaces, parks, and corporate plazas where sculptures are expected to remain outdoors for decades without significant intervention.
The sculpture design consists of several concentric steel rings of decreasing diameter, arranged in a spiral rather than a flat circular stack, with a curved accent element passing diagonally through the center to break the symmetry and add a sense of motion. Before fabrication began, the design team produced a detailed 3D model so the Australian client could review ring spacing, overall height, and the visual balance of the piece from multiple angles.
Corten steel behaves differently from standard carbon steel during fabrication, since its alloying elements affect both cutting and welding parameters. Engineers calculated plate thickness for each ring based on diameter and expected wind load, with thicker plate used at the outer rings where structural stress is greatest. Internal bracing was added at key points to prevent the open, ring-within-ring structure from flexing under outdoor wind exposure.

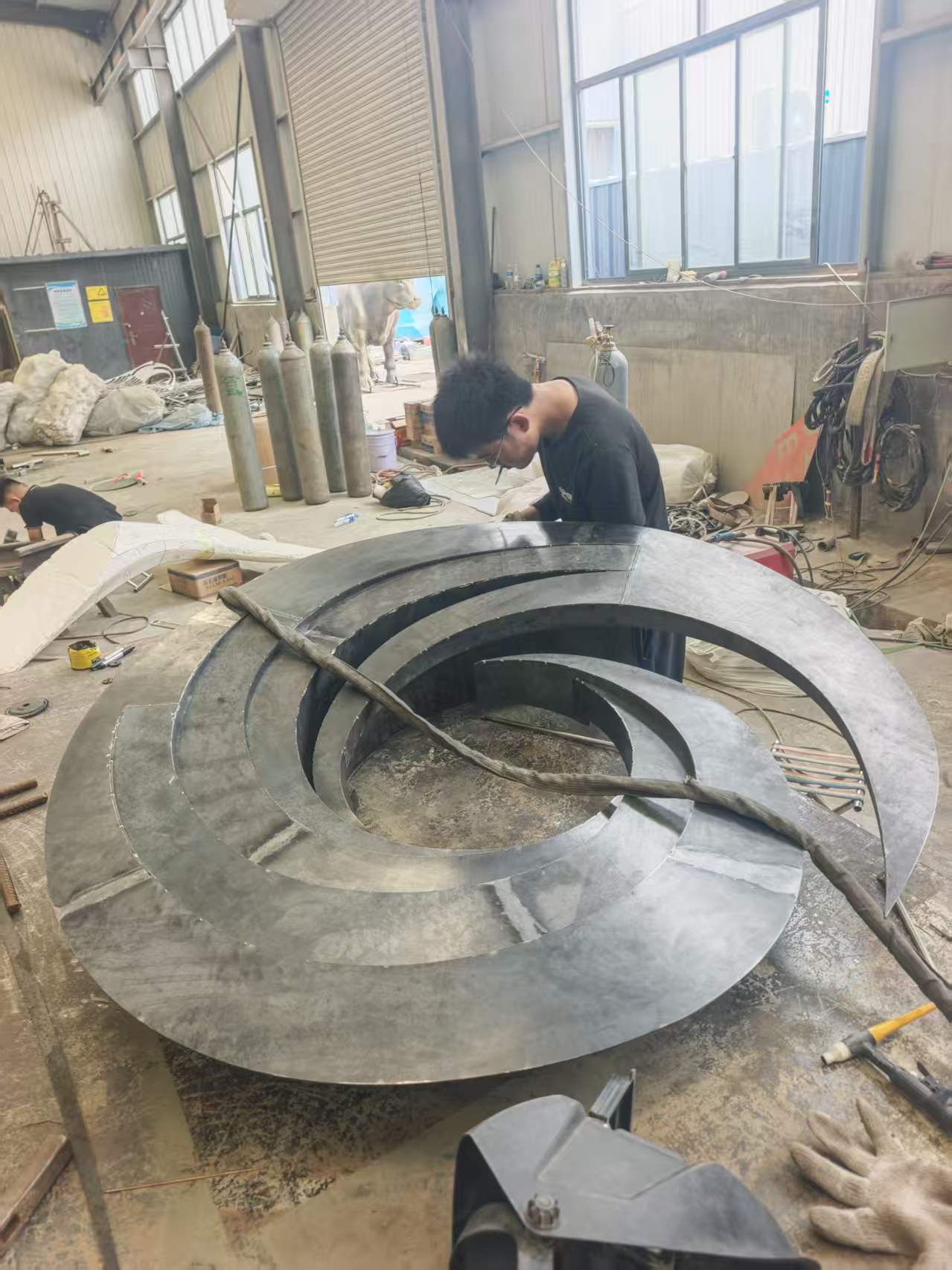

Fabrication began with cutting Corten plate into calculated arc segments, since each ring in a true spiral requires a slightly different curvature rather than a single repeated radius. These segments were then passed through a plate rolling machine to achieve the correct curve, checked against the technical drawing at each stage to ensure consistency across the full structure.
Rings were first tack-welded into position, allowing the fabrication team to confirm overall proportions matched the approved 3D model before committing to full welds. Full welding then proceeded in controlled stages rather than a single continuous pass, since welding an entire seam at once can cause heat distortion in thinner plate sections. This staged approach kept the rings true to their intended curvature throughout assembly.
After welding, all seams were ground smooth so the finished rings would read as continuous curves. The surface was then prepared to encourage even, uniform weathering once installed outdoors, avoiding blotchy or inconsistent patina development, which is one of the most common quality issues in Corten sculpture work when surface preparation is rushed.
Before packing, the sculpture underwent a full inspection covering weld seam integrity, ring alignment, and overall dimensional accuracy against the original drawing. Inspectors checked for any gaps at the joints and verified that the accent piece intersected the rings at the exact angle specified in the approved design, since a small deviation in this angle noticeably changes how the sculpture reads visually from a distance.
| Inspection Point | Purpose |
| Weld seam check | Confirm no gaps or incomplete fusion |
| Ring alignment | Ensure spiral curvature matches drawing |
| Accent piece angle | Verify visual balance from all sides |
| Surface finish | Check for even grinding and weathering readiness |
Given the sculpture's size, the piece was designed for modular shipping, with sections bolted together on site rather than shipped as a single unbreakable form. Custom steel bracing and wooden crating protected the rolled surfaces during sea freight, and each section was labeled to match the assembly sequence so the receiving installation team could reassemble the sculpture in the correct order without confusion.
On-site anchoring was calculated to account for wind load in an open public space, with a base plate and foundation bolts specified in advance so local installers could prepare the footing before the sculpture arrived. This kind of advance planning is essential for any large outdoor steel sculpture, since foundation work often needs to begin well before the piece itself is shipped.
This project illustrates several points worth considering for anyone planning a similar commission. Corten steel offers a low-maintenance, naturally evolving finish well suited to public spaces, but it requires careful plate thickness calculation and staged welding to avoid distortion during fabrication. A spiral form in particular benefits from an early 3D model review, since ring spacing and accent angles are difficult to judge accurately from 2D sketches alone.
Following this sequence, from design review through staged welding to modular shipping, allowed the Corten steel spiral sculpture to move from concept to installation-ready condition for its Australian destination without unexpected issues along the way.
